Cloudflare Turnstile

Turnstile is the provider to reach for first: a visible widget, no score to tune, and a set of dummy keys that work on localhost. There is nothing to install - the provider lives in core - so the whole job is two keys and one config block.

Quick start

If you already have a site key and a secret key, this is the entire integration.

CLOUDFLARE_TURNSTILE_SITE_KEY=0x4AAAAAAA...
CLOUDFLARE_TURNSTILE_SECRET_KEY=0x4AAAAAAA...

import { buildApiConfig } from '@vitnode/core/vitnode.config'

export const vitNodeApiConfig = buildApiConfig({
  plugins: [],
  captcha: {
    type: 'cloudflare_turnstile',
    siteKey: process.env.CLOUDFLARE_TURNSTILE_SITE_KEY,
    secretKey: process.env.CLOUDFLARE_TURNSTILE_SECRET_KEY,
  },
})

Restart the API and the widget appears on /register, and on /login/reset-password on a deployment that has an email adapter to send the link with. The rest of this page is how to get those two values.

export const vitNodeApiConfig = buildApiConfig({
  captcha: process.env.CLOUDFLARE_TURNSTILE_SECRET_KEY
    ? {
        type: 'cloudflare_turnstile',
        siteKey: process.env.CLOUDFLARE_TURNSTILE_SITE_KEY,
        secretKey: process.env.CLOUDFLARE_TURNSTILE_SECRET_KEY,
      }
    : undefined,
})

Create the widget

Sign in to Cloudflare

Open the Cloudflare dashboard and sign in.

Turnstile is an independent product - Cloudflare's own words are that you can use it "on any website, regardless of whether it is proxied through the Cloudflare network" - so there is no DNS to move before you start.

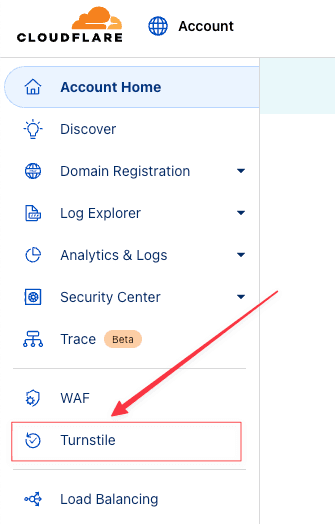

Open Turnstile

Pick Turnstile in the account sidebar, below WAF.

Add a widget

Press Add widget and fill in three things, then Create:

Field	What to put in it
Widget name	Anything - it is internal. Your site's name is a fine answer.
Hostname management	Every hostname you serve the form from, e.g. your-domain.com.
Widget mode	Managed unless you have a reason. All three modes work with VitNode.

Copy the site key and the secret key

Cloudflare shows both immediately after the widget is created, and you can come back to them from the widget's Settings tab at any time.

The site key is public - the API publishes it so the browser can load the widget. The secret key is not: it is only ever sent from your API to Cloudflare's siteverify endpoint.

Set the environment variables

These names are not magic - they are whatever you read in your config on the next step. What matters is that both are server-side variables, because the secret key must never reach a browser bundle.

CLOUDFLARE_TURNSTILE_SITE_KEY=0x4AAAAAAA...
CLOUDFLARE_TURNSTILE_SECRET_KEY=0x4AAAAAAA...

Register the provider

Add the captcha block to your API config with type: 'cloudflare_turnstile'.

import { buildApiConfig } from '@vitnode/core/vitnode.config'

export const vitNodeApiConfig = buildApiConfig({
  plugins: [],
  captcha: {
    type: 'cloudflare_turnstile',
    siteKey: process.env.CLOUDFLARE_TURNSTILE_SITE_KEY,
    secretKey: process.env.CLOUDFLARE_TURNSTILE_SECRET_KEY,
  },
})

The config is evaluated when the process boots, so restart the API rather than waiting for a hot reload to notice.

Verify it works

Ask the API what it thinks it has configured. The site key comes back on the public middleware route:

curl http://localhost:3000/api/@vitnode/core/middleware
# {"isEmail":false,"sso":[],"captcha":{"siteKey":"0x4AAAAAAA...","type":"cloudflare_turnstile"}}

Then open /register. A Turnstile widget renders just above the Register button, and the button stays disabled until the widget reports success.

The AdminCP confirms it from the other side: AdminCP → System → Integrations (/admin/core/system/integrations) shows the Captcha card as Active, with Cloudflare Turnstile underneath.

Test keys for local development

Cloudflare publishes dummy keys that work on any hostname, localhost included. Use them while you are wiring the form up, and to reproduce failures on purpose.

The two halves are independent: a site key decides what the widget does in the browser, a secret key decides what siteverify answers. Pick one of each.

Test site keys

Test secret keys

A test site key mints the token XXXX.DUMMY.TOKEN.XXXX, which a real secret key rejects - so mixing a dummy site key with a production secret is its own kind of 400.

All of them come from Cloudflare's testing reference, which is also where the failure modes each one reproduces are spelled out.

Widget modes

All three of Cloudflare's modes work, because VitNode renders the widget through turnstile.render and waits for its callback either way.

Invisible mode is the one worth thinking twice about: the button is disabled for a moment with nothing on screen explaining why.

The widget also inherits two things from the page it renders on - the visitor's locale, and your site's resolved theme - so it follows the language switcher and dark mode with no configuration of its own.
